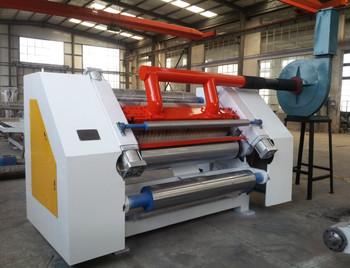

Steam Electric Heating Single Facer Machine , Corrugated Box Making Machine

Brand Name : Xinglong

Model Number : SF300 series

Certification : CE certificate

Place of Origin : Hebei China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 100 set/year

Delivery Time : 25~35days

Packaging Details : no package by FCL, wooden pallets and wooden case by LCL

After-sales Service Provided : Engineers available to service machinery overseas

Warranty : 12 months

Flute roller diameter : 300mm

Design speed : 80m/min

Working speed : 60m/min

Heating type : Steam or electric

Contact Now

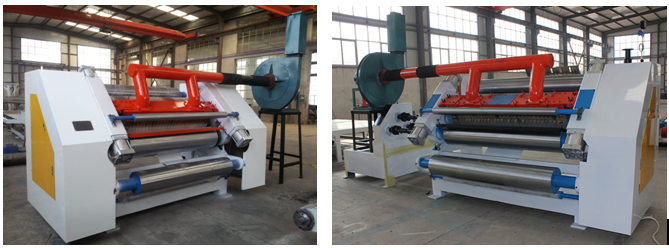

SF300 Series Single Face Corrugation Machine

Technology parameters:

Model SF300-1400 SF300-1600 SF300-1800
Effective width 1400mm 1600mm 1800mm
Flute roller diameter 300mm 300 300
Design speed 80m/min 80m/min 80m/min
Working speed 60m/min 60m/min 60m/min
Heating type Steam or electric
Application medium paper 80gsm-170gsm
Flute type UV, A, B, C, E, F, D
Power About 20kw or 60kw

Model SF320-1400 SF320-1600 SF320-1800
Effective width 1400mm 1600mm 1800mm
Flute roller diameter 320mm 320 320
Design speed 100m/min 100m/min 100m/min
Working speed 80m/min 80m/min 80m/min
Heating type Steam or electric
Application medium paper 80gsm-170gsm
Flute type UV, A, B, C, E, F, D
Power About 20kw or 60kw

Features

  • Vacuum suction type pulling cardboard with wind control device.
  • Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
  • Used pneumatic control top flute roller, pressure roller and gluing roller come back movement.
  • Flute roller adopts 48CrMo high quality alloy steel, with heat treatment, surface be grinded and chrome plated.
  • Adjust gluing width by motorized (manual option)
  • Glue amount adjustment by pneumatic( electric option)
  • The bearing of flute roller and pressure roller adopt high temperature resistant lubrication grease.
  • Vacuum suction type pulling cardboard with wind control device.
  • Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
  • Independent gear box connect with gimbal to drive machine running more stable. (option:electric heating without gimbal)

Steam Electric Heating Single Facer Machine , Corrugated Box Making Machine
