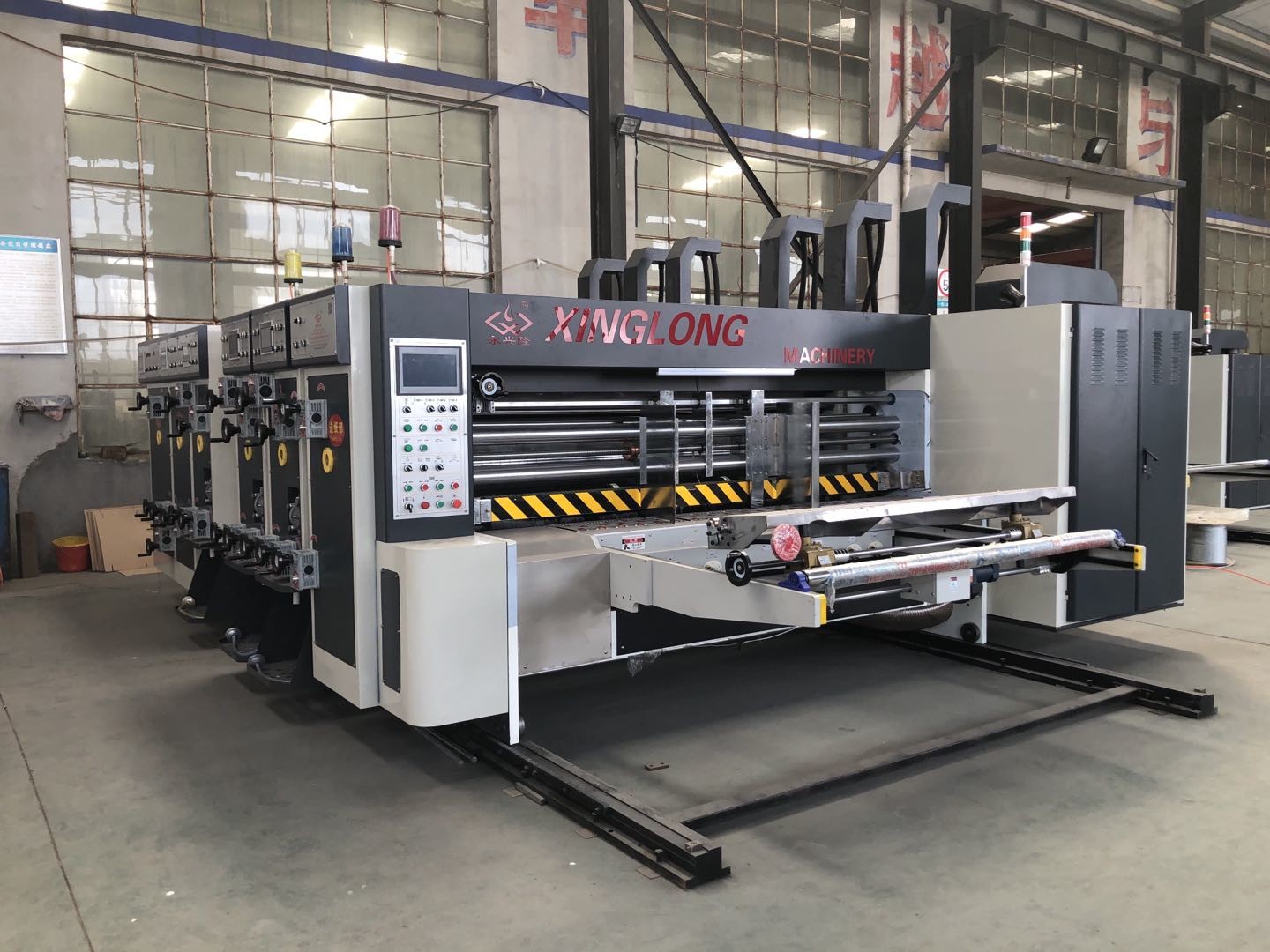

0.5mm Printing Slotting Die Cutting Machine For Corrugated Carton Box

Economic Printing Slotting Die Cutting Machine For Corrugated Carton Box

Lead edge feeder with vacuum suction, wind is adjustable depend on sheet, make sure feed sheet smoothly.Main motor with start protecting device, machine cannot run when machine units aren’t lock.Continuous or skip feeding availableDouble feed rollers wrapped with rubber, with groove prevent overpressure, reduce pressed sheetLeft-right baffle adjusted by computer with automatic flap, back baffle adjusted by motorized, front baffle manual synchronous adjust.Dust clearance bush and fan to clean dust on board. Air outlet can be adjusted as per sheet size

Machine units move by motorized and move with alarm belling to make sure safety.

• Fast change printing plate, with footstep to control cylinder rotate clockwise or anticlockwise
• The worktable adopts centrifugal high pressure fan and the wind force is controlled by frequency converter
• The press roller is made of high quality seamless steel pipe, surface grinding and hard chromium plating.
• Feed roller, press roller, rubber roller, anilox roller gap adjust with self-lock part
• Printing phase adjusted by PLC in 360degree with digital input, do when machine running or stop
• Pneumatic brake device to keep printing register fixed, when units separate or clean, brake limit gear rotate, keep original gear position.
• Pneumatic lift anilox roller for ink, motorized ink will no dry.
• Printing cylinder made of seamless steel pipe, be grinded with chrome plated, do balance treatment, running smooth and steady.
• Lift-down design( when feed sheets anilox roller down in order, stop sheet lift rollers in order)
• Memory function, after clean plate it back to original position
• Printing precision: +-0.5mm.
• Printing cylinder horizontal move by motorized
• Steel anilox roller from Haili brand (option: ceramic roller with doctor blade, The doctor blade adopts pneumatic push mode, and the scraper fits more closely with the roller, and the ink scraping is more uniform


0.5mm Printing Slotting Die Cutting Machine

Carton Box flexo printer slotter
